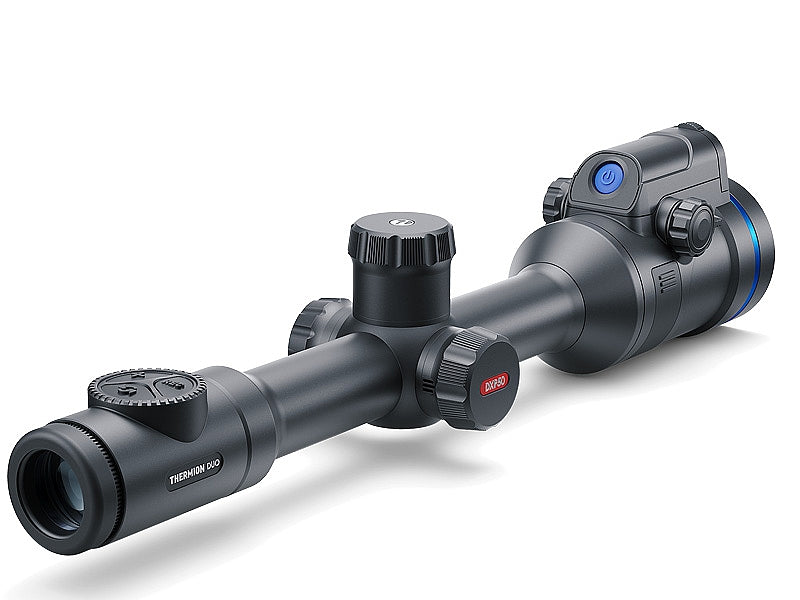

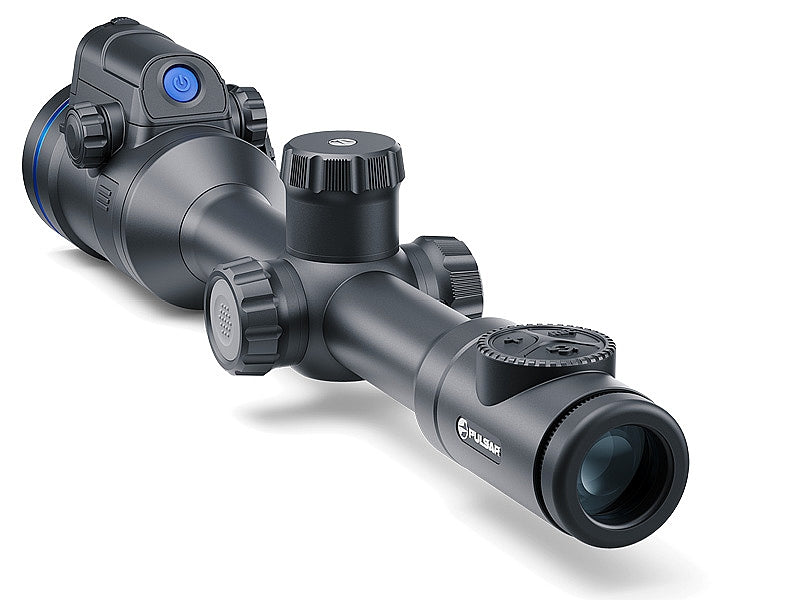

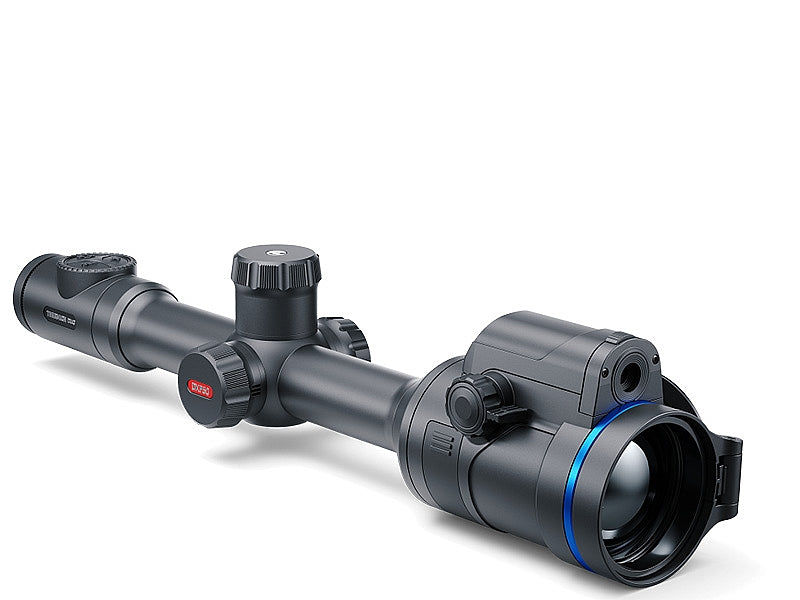

Pulsar Thermion Duo DXP50 Thermal Rifle Scope
*UK Users Only*
Dual-use: Thermal Scope with Colour Day Vision Capabilities
The first of its kind, the Pulsar Thermion Duo DXP50 scope offers thermal imaging detection capabilities together with unrivalled, full-colour, identification capabilities associated only with normal day optics. Developed from their impressive Thermion 2 XP50 Pro thermal scope, the Duo DXP50 offers the best in thermal imagery alongside the brilliant simplicity and clarity of colour daytime optics.
With one click, the user can quickly switch between thermal and daytime imagery, without the need to refocus.
Featuring a highly sensitive, European-made 640x480, 17µ, <25mK NETD Lynred thermal sensor, combined with a powerful, fast aperture 50mm f1.0 germanium objective lens, the Thermion Duo DXP50 will offer an impressive thermal detection range of up to 1800m and a 12.4° field of view - working effectively and providing crystal clear thermal imagery in adverse conditions such as heavy rain, dense fog, or environments in which thermal contrast is low.
For daytime viewing, the Duo thermal scope features a 3840x2160 4K CMOS sensor which provides crystal clear daytime observation capabilities, with a full-colour HD image and accurate daytime colour rendering.
Zero this scope quickly using Pulsar's thermal targets.
Find our Pulsar Comparison Tool here
Product details
Key Features
- Day & night use
- 4k full-colour sensor for daytime hunting
- 640x480 @ NETD < 25 mK high-sensitivity thermal imaging sensor
- Fast aperture F50/1.0 thermal lens
- Wide-angle eyepiece for comfortable observation
- Instant start-up
- High-precision ambidextrous lens focusing
- One-shot freeze zeroing in thermal and digital channels (zeroing must be done separately for each channel)
- A selection of 10 reticle shapes in nine colour modes
- A selection of 8 colour palettes in thermal mode
- High-contrast HM AMOLED display
- 1800 m thermal detection range / day & night
- Mounting on standard 30 mm rings
- Up to 6 hours of battery life
- Video & image recording with Stream Vision 2 compatibility
Specifications
Main | |
Sensor | 640x480 pix. @ 17 µm (thermal) | CMOS 3840x2160 (digital) |
Objective lens | F50/1.0 (thermal) | F17/4.34 (digital) |
Magnification, x | 2 – 16 (for both channels) |
Field of view (HxV), degrees / m@100m | 12.4x9.3 / 21.8x16.4 (for both channels on minimal magnification) |
Detection range, m | 1800 |
Sensor | |
Type | Uncooled (thermal) | Full-color CMOS (digital) |
Resolution, pixels | 640x480 (thermal) | 3840x2160 (digital) |
Pixel pitch, µm | 17 |
NETD, mK | <25 |
Frame rate, Hz | 50 |
Optics | |
Objective lens | F50/1.0 (thermal) | F17/4.34 (digital) |
Magnification, x | 2 – 16 (for both channels) |
Field of view (HxV), degrees / m @ 100 m | 12.4x9.3 / 21.8x16.4 (for both channels on minimal magnification) |
Eye relief, mm | 50 |
Display | |
Type | AMOLED HD |
Resolution, pixels | 1024х768 |
Range Performance | |
Detection range, m | 1800 |
Reticle | |
Click value, H/V, mm at 100 m | 21.25 / 21.25 (thermal channel) | 21.26 / 21.26 (digital channel) |
Click range, H/V, mm at 100 m | 4250 / 4250 (thermal channel) | 4252 / 4252 (digital channel) |
Number of preloaded reticles | 10 |
Video Recorder | |
Video / photo resolution, pixel | 1024x768 |
Video / photo format | .mp4 / .jpg |
Built-in memory, GB | 16 |
Wi-Fi | |
Wireless Protocol | Wi-Fi |
Wireless Standard | IEEE 802.11 b/g/n/ac |
Frequency, GHz | 2.4 / 5 |
Environmental Characteristics | |
Degree of protection, IP code (IEC60529) | IPX7 |
Operating temperature range, °С | -25 – +50 |
Connections and Compatibilities | |
Max. recoil power on rifled weapon (Eo), Joules | 6000 |
Shock resistance on the smooth-bore rifles, caliber | 12 |
Compatible mounts | Standard 30 mm rings |
Supported Application | Stream Vision 2 |
Power Supply | |
Output voltage, V | 3.0 – 4.2 |
Battery type | Li-Ion Battery Pack АPS2 (external), Li-Ion Battery Pack APS3 (external)-sold separately*, Li-Ion Battery Pack APS5 (internal) |
Capacity, mAh | 2000 (external) + 4900 (internal) |
Operating time on battery pack (at t=22°C), h * | 6 |
External power supply, V | 5 V, 9 V (USB Type-C Power Delivery) |
Weight & Size | |
Body material | Aluminum alloy |
Dimensions, mm | 420x78x83.5 |
Weight, kg | 0.96 (batteries included) |
